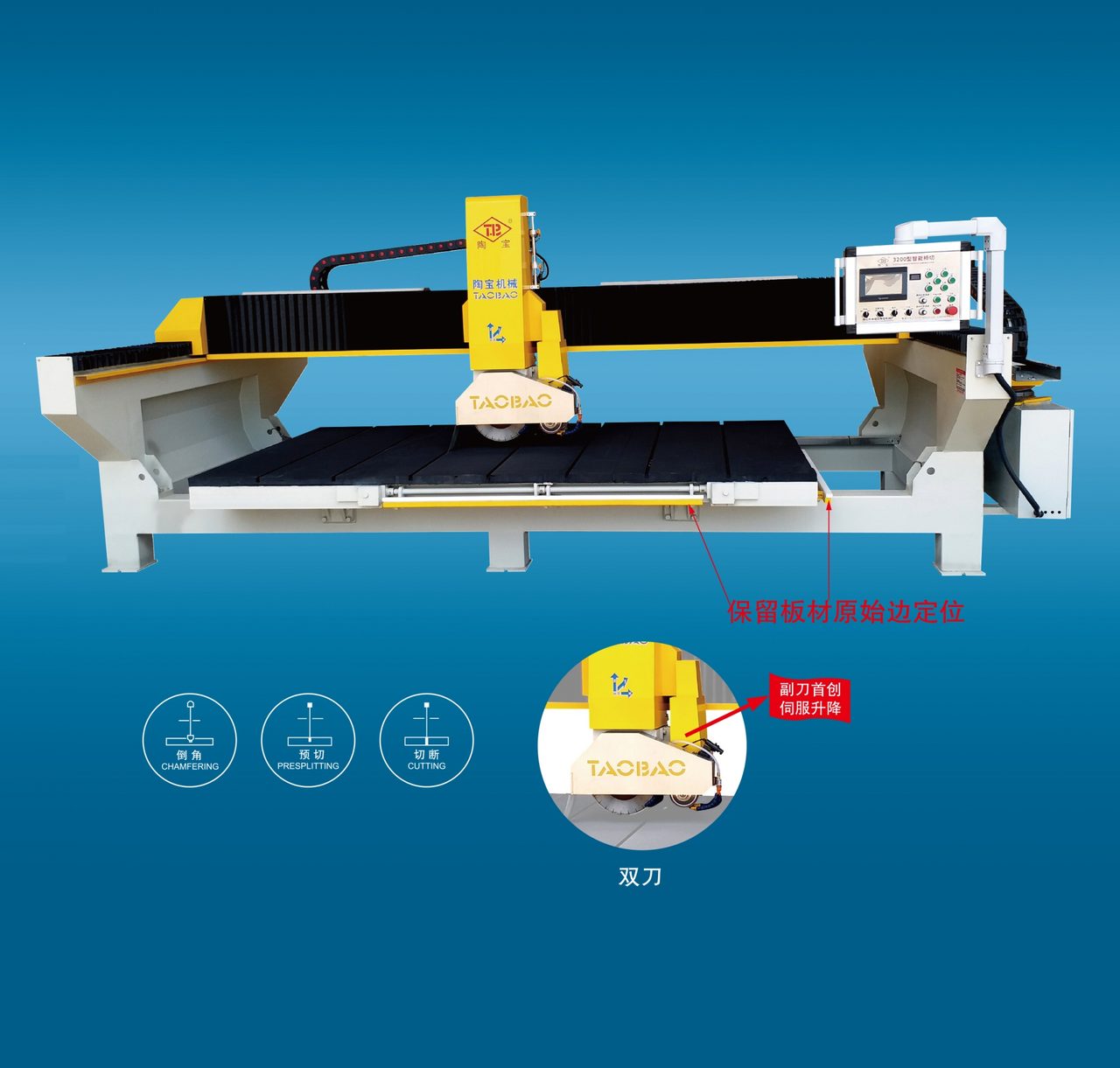

TBQJ-3200 Bridge Cutting Machine (Double Head)

How to calibrate a bridge saw for square and accurate cuts?

Bridge saw calibration requires systematic checking of three areas:

1. Fence Squareness (check after every blade change + weekly)

• Place a machinist's square against the fence and blade face
• Adjust fence pivot bolts until the square contacts blade along its full length
• Make test cut and measure both ends with calipers — they must be identical

2. Blade Vertical Tilt (check weekly)

• Use digital angle gauge on table surface next to blade
• Verify 90° angle; adjust tilt mechanism if off

3. Rail Straightness & Parallelism (check monthly)

• Use precision straightedge along each rail to detect bow/twist
• Measure rail height from table at multiple points on both rails
• Adjust mounting bolts per manufacturer's manual

Pro Tip: Always verify calibration with a test cut on scrap material. Park Industries specifies alignment tolerance of ±0.005 inches.

5-axis CNC vs standard bridge saw — which one is better?

5-axis CNC bridge saws provide 3D profiling, miter cuts, and complex geometry capabilities that standard bridge saws cannot achieve. Standard bridge saws only handle 2D straight cuts.

5-axis CNC is recommended for high-end countertop fabrication, architectural stone work, and shops processing premium materials where waste reduction justifies the investment.

What causes bridge saw cutting inaccuracy and how to troubleshoot?

Systematic 4-Step Troubleshooting:

Step 1: Identify the Problem

• Observe: Water leaks, unusual sounds, cut surface quality
• Listen: Grinding/rattling/squealing sounds
• Record: Time of occurrence, material type, cutting parameters

Step 2: Determine Root Cause Category

Step 3: Apply Correct Fix

• Check external factors first: voltage, water supply, blade specification
• Clean rail surfaces of stone dust — accumulated dust causes uneven movement

Step 4: Test and Verify

• Run test cuts on scrap material
• Monitor full shift after repair

Common Mistake: Replacing parts without confirming root cause (e.g., changing blade when alignment is the issue).

What is the daily and weekly maintenance checklist for a bridge saw?

Daily Maintenance (Every 8 Hours):

• [ ] Check coolant and nozzle flow to blade
• [ ] Inspect blade appearance for wear/damage
• [ ] Flush worktable and rails of stone dust
• [ ] Check water pressure
• [ ] Verify laser guide alignment
• [ ] Clean machine surfaces

Weekly Maintenance (Every 40 Hours):

• [ ] Clean Y-axis rollers and guide rails
• [ ] Lubricate X-axis rack
• [ ] Check all hose connections for cracks/leaks
• [ ] Verify water pressure at standard levels
• [ ] Check belt tension with tension meter
• [ ] Measure motor temperature

Monthly Maintenance (Every 120 Hours):

• [ ] Full alignment calibration check
• [ ] Clean Z-axis guide rails
• [ ] Lubricate all bearings
• [ ] Replace 50μm water filter
• [ ] Inspect electrical cabinet
• [ ] Deep clean including partial disassembly

Quarterly Maintenance:

• [ ] Table flatness check (straightedge + feeler gauges)
• [ ] Full calibration test cut
• [ ] Belt replacement if >10% stretched

Cost Impact: Unplanned downtime averages $1,500/hour; 42% of stoppages are equipment failure; manufacturers face ~800 hours of unplanned downtime annually. Prevention costs 15-20% of total maintenance budget but prevents 70-80% of potential failures.
