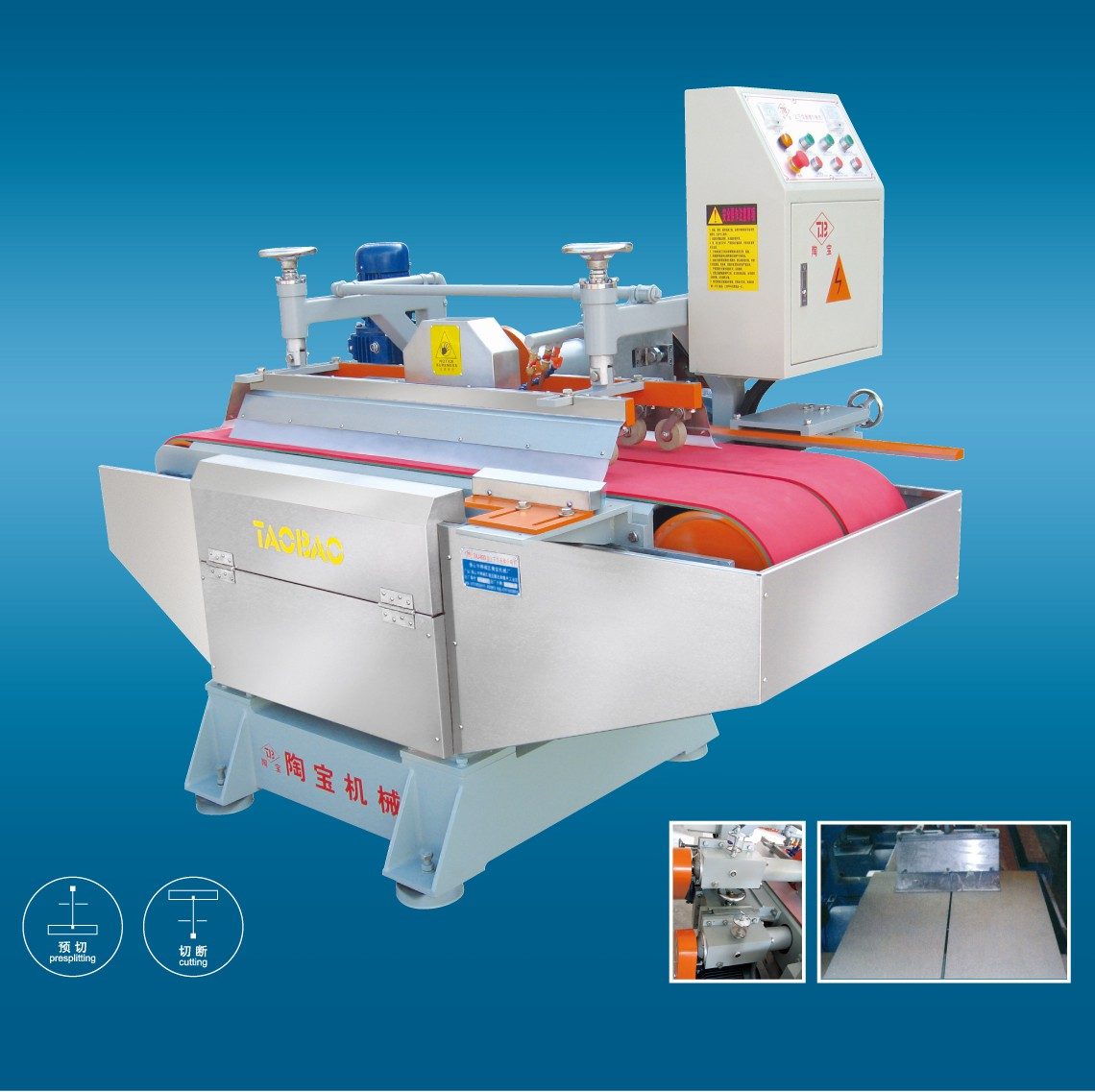

SXJ-800 Continuous Tile Cutting Machine

What safety standards and PPE are required for tile cutting machine operation?

Essential Safety Requirements:

Personal Protective Equipment (PPE):

• Safety glasses with side shields (mandatory)
• Hearing protection (prolonged exposure to >85dB)
• Dust mask/respirator (especially for dry cutting — NIOSH N95 minimum)
• Steel-toe boots
• Close-fitting work clothing (no loose sleeves, jewelry)
• Cut-resistant gloves (for material handling)

Machine Safety Features:

• Blade guard in place at all times during operation
• Emergency stop button accessible from operating position
• Lockout/Tagout (LOTO) procedure for maintenance
• Water cooling system functional for wet cutting
• Anti-splash design to contain slurry

Workspace Safety:

• Adequate ventilation and dust collection system
• Non-slip flooring around machine (wet area)
• Proper electrical grounding (3-phase equipment)
• Clear work area — no trip hazards
• Slurry management and proper disposal

Operator Training Requirements:

• Read complete user manual before operation
• Understand emergency shutdown procedures
• Know blade specifications and proper mounting
• Training in identifying abnormal sounds/vibrations

What causes blade glazing (dull blade that won't cut) and chipping?

Blade Glazing: Metal bond wears too slowly, diamond particles aren't exposed → blade polishes smooth and stops cutting.

Fix: Dress the blade by cutting an abrasive material (60-grit dressing stone or 1/8" limestone); make short dress cuts to re-expose diamonds. Monitor current draw — should decrease after successful dressing.

Chipping/Edge Quality Issues — The "Opposites Attract" Rule:

Other causes of chipping:

• Feed rate too high for material hardness
• Insufficient cooling water causing thermal stress
• Worn spindle bearings causing blade wobble

Recommended Parameters:

• Quartzite feed rate: 40-60 inches/min
• Engineered stone/granite: 60-120 inches/min
• 14" blade optimal RPM: 2,800-3,200
• 3cm granite: 20-25mm depth per pass

How to select the right diamond blade for tile cutting?

Core Principle: Diamond blades cut by grinding, not sawing. Diamonds embedded in metal matrix abrade the tile into fine powder.

Blade Selection by Material:

Blade Size & Arbor: Common sizes 4", 5", 7", 10", 14". Check saw manual for max diameter. Use reducer bushing only if necessary — correct arbor hole is always preferable for balance.

Rim Types:

• Continuous Rim: Smoothest, chip-free — ceramic, porcelain, glass. Best with water.
• Segmented Rim: Fast, stays cool — dry cutting natural stone, pavers. Rougher cut.
• Turbo Rim: Hybrid — good balance speed/clean finish. Wet or dry.

Pro Tips:

• Break-in new blade: first few cuts slow and light
• "Soft bond for hard material; hard bond for soft material"
• Never force tile into blade — let blade do the work
• For wet cutting, ensure adequate water flooding at entry point

How to calibrate a bridge saw for square and accurate cuts?

Bridge saw calibration requires systematic checking of three areas:

1. Fence Squareness (check after every blade change + weekly)

• Place a machinist's square against the fence and blade face
• Adjust fence pivot bolts until the square contacts blade along its full length
• Make test cut and measure both ends with calipers — they must be identical

2. Blade Vertical Tilt (check weekly)

• Use digital angle gauge on table surface next to blade
• Verify 90° angle; adjust tilt mechanism if off

3. Rail Straightness & Parallelism (check monthly)

• Use precision straightedge along each rail to detect bow/twist
• Measure rail height from table at multiple points on both rails
• Adjust mounting bolts per manufacturer's manual

Pro Tip: Always verify calibration with a test cut on scrap material. Park Industries specifies alignment tolerance of ±0.005 inches.
