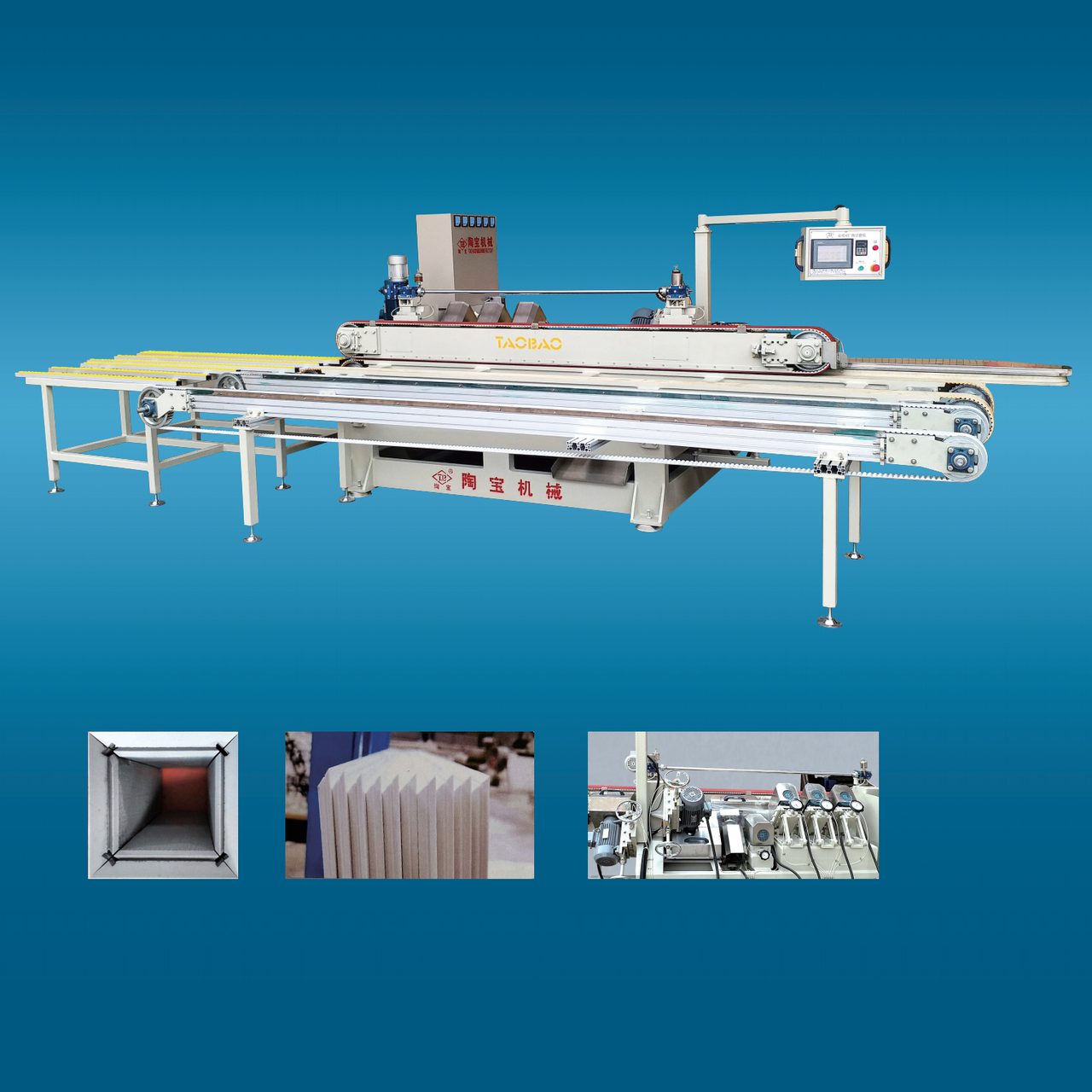

DJ-3200 Sintered Stone 45° Chamfering Machine (7-Head)
The DJ-3200 Sintered Stone 45° Chamfering Machine (7-Head) creates precise 45° bevel edges on porcelain and sintered stone slabs. A multi-head configuration provides a consistent angle and ultra-smooth finish across the full slab width — essential for seamless mirror joints in countertops and wall cladding.
Key Features
Precision Cutting
Engineered for clean edges with minimal chipping on ceramic, porcelain and stone.
Built to Last
Rigid frame and oil-lubricated spindles with external water cooling for long service life.
Automation Ready
Reduces manual labor and improves yield for continuous production environments.
Global Support
CE-aware build, English documentation and remote technical support for overseas buyers.
Applications
Frequently Asked Questions
出现"倒角角度不精确，偏差超过±0.5mm"问题如何解决？
Precision linear guides with pre-loaded bearings and CNC-machined angle adjustment mechanisms deliver repeatability ≤±0.3mm. Every machine is calibrated with a laser interferometer before shipment — third-party accuracy reports available. Angle parameters are digitally set via touchscreen, eliminating manual error.For sintered stone 45° chamfering, the CNC thickness adjustment automatically adapts chamfering parameters for different panel thicknesses, ensuring consistent angle accuracy.
出现"倒角磨头容易堵塞，需要频繁清理"问题如何解决？
The chamfering head features an open structure design allowing grinding waste to discharge naturally, minimizing buildup. A dust extraction port allows connection to shop dust collection systems. A quick compressed air blow-down at the end of each shift keeps the area clean.
关于"45°切锯片轴弯曲或轴承损坏"需要了解什么？
The spindle uses precision-grade standard bearings mounted in an integral spindle housing for even load distribution. Dynamic balancing is performed before shipment. Run idle 2-3 minutes each shift to check for abnormal noise. Bearings are standard-spec, easy to source — we maintain spare stock.
关于"倒角磨头电机过热"需要了解什么？
The chamfering motor is 1.5kw, matched to processing loads. F-class insulation with properly set thermal protectors. Ensure the grinding head is clear and coolant is sufficient. If overheating persists, check if grinding pressure is excessive — reduce pressure or feed speed as needed.
Request a Quote for DJ-3200 Sintered Stone 45° Chamfering Machine (7-Head)
Send us your material type, size and target output — we reply within 24h.
Get a Quote
